Mini Skid Steer Loaders with Attachments CE EPA

Load and Unload Mode : Front Discharge

Walking Mode : Wheeled

Type : Small Loader

Rated Power (Kw) : 35.7

Cylinders : 4

Displacement (Jiang) : 3.3

Walking Speed (Km/H) : 12

Transport Package : Nude Package

Specification : 3433*1800*2007mm

Trademark : yurui

Origin : Shandong Jining

HS Code : 848110

Production Capacity : 12000 Sets/Year

Contact Now

Mini Skid Steer Loaders with Attachments CE EPA

model	HN50
engine
Engine model	Xinchai 490
Rated power (kW)	35.7
Maximum torque (N · m)	200/1600
Cylinders	4
Displacement (Jiang)	3.3
drive system
Walking speed (km/h)	12
Transmission form	Hydrostatic closed circuit
Walking pump	Double swash plate axial piston variable displacement pump
Walking motor	Radial Plunger Quantitative Motor X2/Radial Plunger Two speed Variable Motor
Chain specifications	800S-1R-60
Chain tension adjustment	nothing
tyre	10.0 (12.0) -16.5
performance parameter
Rated load (kg)	870
Overturning load (kg)	1740
Lifting mechanism form	Radial lifting
Bucket lifting force (N)	22000
hydraulic system
System safety pressure (bar)	180
Rated flow rate of hydraulic system	66.2 (L/min
Manipulation control method
Manipulation control method	Mechanical
External dimensions
Maximum height of the top of the cab (mm)	2007
Total length with bucket (mm)	3433
Total length without attachments (π mm	2571
Total width of tire edge (mm)	1740
Total width of bucket edge (mm)	1800
Wheelbase (mm)	1050
Scope of work
Unloading height (mm)	2551
Product unloading distance (m)	603
Maximum height of bucket hinge pin (mm)	3265
Ground clearance (mm)	185
other
Working weight with standard bucket (Kg)	2950
Fuel tank volume (L)	88
Bucket volume (m)	0.35

Q: Are you a manufacturer of the Skid steer?
A: Yes, we are. our company has passed ISO and CE certification, products have been exported to more than 20 countries and regions.

Q: How is your after-sales service of the loader machine?
A: We offer a one-year warranty for the entire machine and a 3-month warranty for electrical components,We have a number of after-sales services that provide 24-hour technical support via phone and e-mail.

Q: What is your lead time of Chinese wheel loader?
A: It takes 7-10 days for normal goods and 15-25 for customization.

Q: What is your payment term of the Skid steer?
A: T/T, L/C.

Q: Is it convenient to visit your factory and Skid steer? How can I get there?
A: Welcome you to visit our company. We will pick you up when you arrive.

If you can't find what you're looking for, please contact us and place a custom order. We can produce according to your sample or drawing.

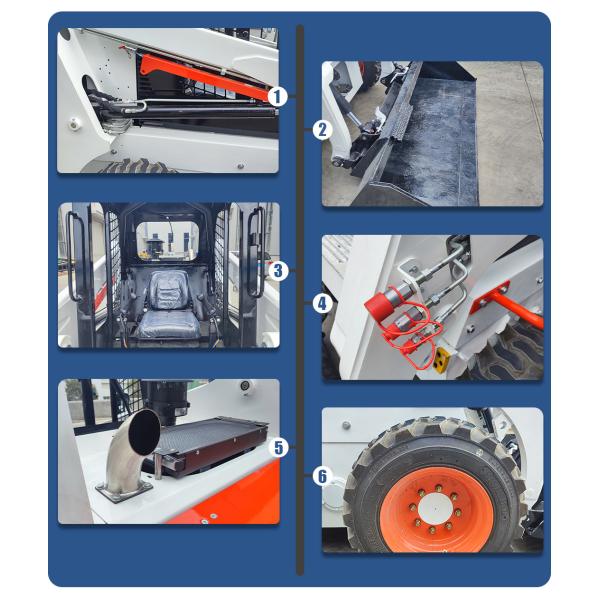

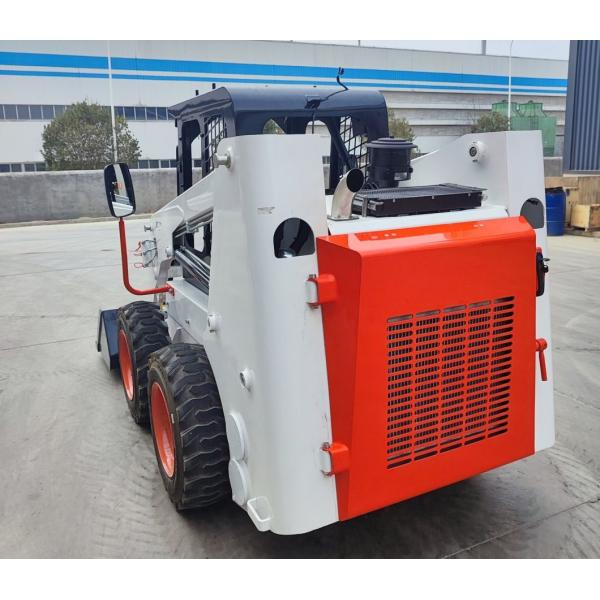

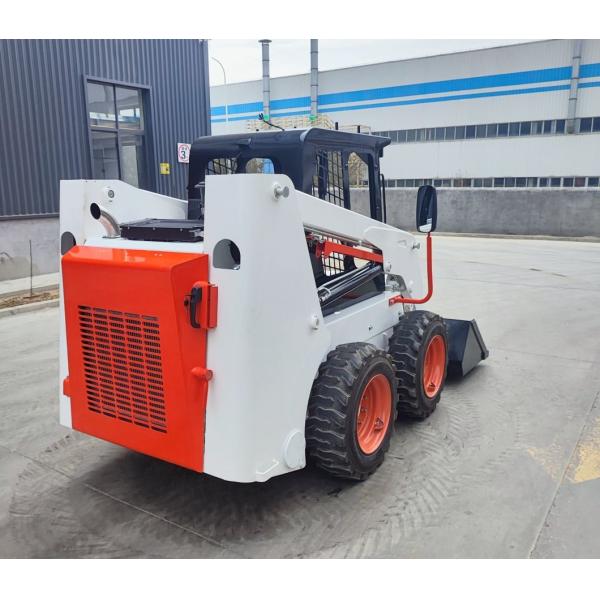

Mini Skid Steer Loaders with Attachments CE EPA Images
